Steam Hose

Steam Hose

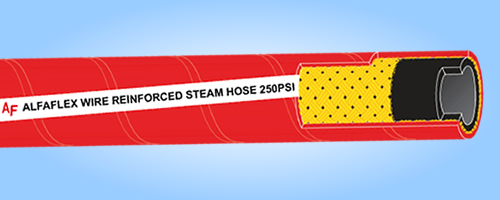

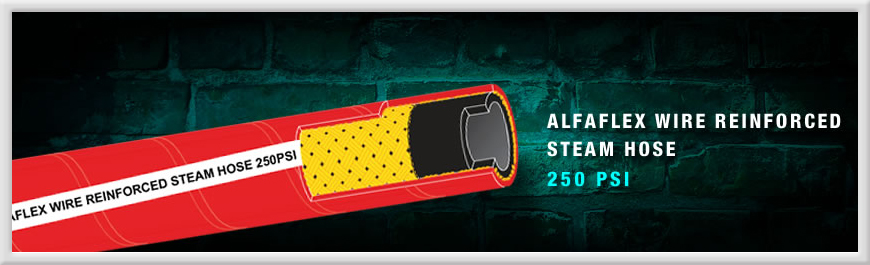

Alfaflex Wire Reinforced Steam Hose 250 PSI

All steam and hot water/steam applications where superior life, safety and performance are important. Special EPDM cover provides substantially longer service life due to its heat age resistance.

T Black EPDM compound C Red EPDM compound R Multiple steel wire cord plies T.P. -40°F to +450° F (-40°C to + 230°C) S.F. 10:1 B ALFAFLEX STEAM HOSE 250 - PSI W.P. * T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.

I.D. O.D. Standard Length Working Pressure Approx. Weight in mm in mm ft m PSI kg/cm2 kg/m 1/2 12.7 0.972 24.7 200 60 250 17 0.71 3/4 19.1 1.222 31.1 200 60 250 17 0.88 1 25.4 1.472 37.4 200 60 250 17 1.06 1 1/2 38.1 2.130 54.1 200 60 250 17 1.92 2 50.8 2.661 67.6 200 60 250 17 2.66 2 1/2 63.5 3.350 85.1 200 60 250 17 4.42 3 76.2 3.850 97.8 200 60 250 17 5.57

* Standard Hose Length : 200ft(60m), 100ft(30m)
