Chemical Hose

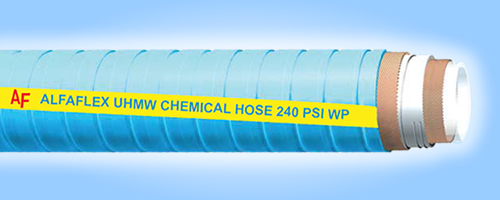

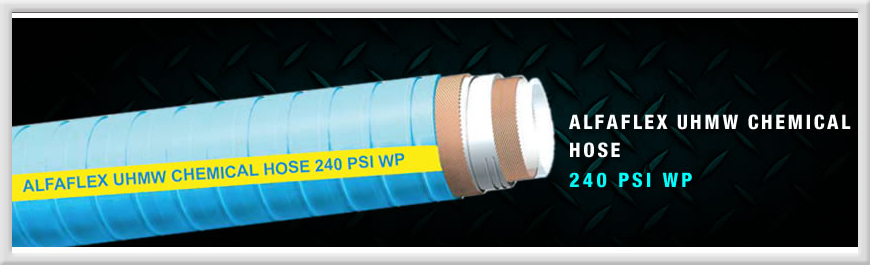

  Alfaflex UHMW HOSE - Corrugated Cover
A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.

T Ultra High Molecular Weight Polyethylene (UHMW)
C Lightly corrugated blue EPDM compound
R Multiple textile plies with dual helix wire
T.P. -40°F to +250°F (-40° C to + 120°C)
S.F. 4:1
B ALFAFLEX UHMW CHEMICAL HOSE 240 PSI W.P.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
I.D. O.D. Standard Length Bend Radius Working Pressure Approx. Weight
in mm in mm ft m in mm PSI kg/cm2 kg/m
1 25.4 1.465 37.2 200 60 7 175 240 16 1.17
1 1/4 31.8 1.717 43.6 200 60 8 200 240 16 1.38
1 1/2 38.1 1.965 49.9 200 60 10 250 240 16 1.58
2 50.8 2.512 63.8 200 60 14 350 240 16 2.24
2 1/2 63.5 3.028 76.9 200 60 17 425 240 16 2.79
3 76.2 3.622 92.0 200 60 21 525 240 16 3.71
4 101.6 4.764 121.0 200 60 28 700 240 16 5.26
6 152.4 6.858 174.2 100 30 42 1,050 240 16 8.74
* Standard Hose Length : 200ft(60m), 100ft(30m)
